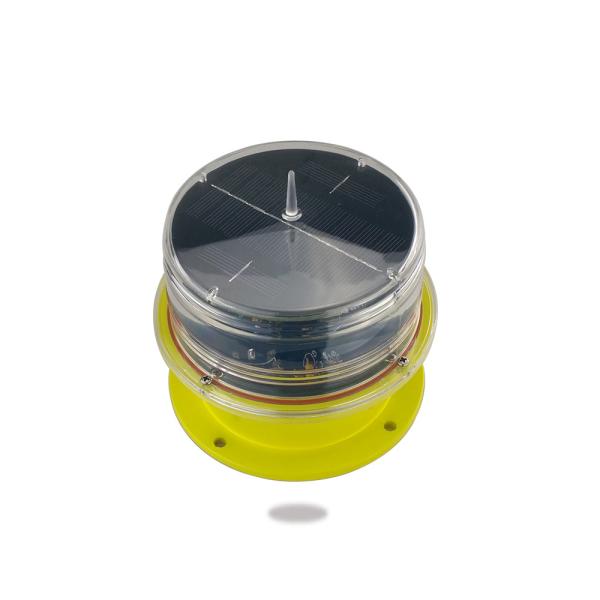

AH-SA-B Solar Airfield Light
AH-SA-B Solar Airfield Light is specially used on permanent airport/heliport where cable power is not convenient or temporary helipad. Light weight make it very easy for user to take and move the AH-SA-B.
Fragile coupling need to be paid separately if needed.
Compliance
ICAO Annex 14 Volume ǁ Heliports 5.3.
FAA AC 150/5390-2B Heliport Design Guide
CAP 437
Features
Electrical
LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light
Physical
Integrated design, enabling a rugged and completely waterproof seal capable of prolonged and deep immersion (IP68).
PC housing,UV resistance, shockproof and corrosion proof.
Bird deterrent spike
Powder coated die casting aluminum base
Built-in mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon
System design
ON/OFF button interface located under base
Optional
External battery charger for 110-240vac charging
Wireless remote control
Carry case for batch of lights
NVG - compatible infrared (IR) LED
Installation bracket
Application
Airport, Touchdown and Lift- off area ( TLOF) , Final Approach and Take- off area ( FATO) , Taxiway lighting, Runway edge lighting, Portable or expedited airfield lighting, Threshold lighting
Helipad taxiway
Emergency operations
| Description | Parameter |
| Lamb Body Material | Aluminum Alloy |
| Base Material | Powder-coated Die-casting aluminum |
| Mounting | 140×140×M6 |
| Dimension(mm) | 162×162×160 |
| Weight(kg) | 1 |
| Product Life Expectancy | ≥10 years |
| Ambient Temperature(℃) | -55~70 |
| Humidity | -0~100 |
| Wind Speed | 80m/s |
| Waterproof | IP68 |
| FAA | AC 150/5390-2B Heliport Design Guide |
