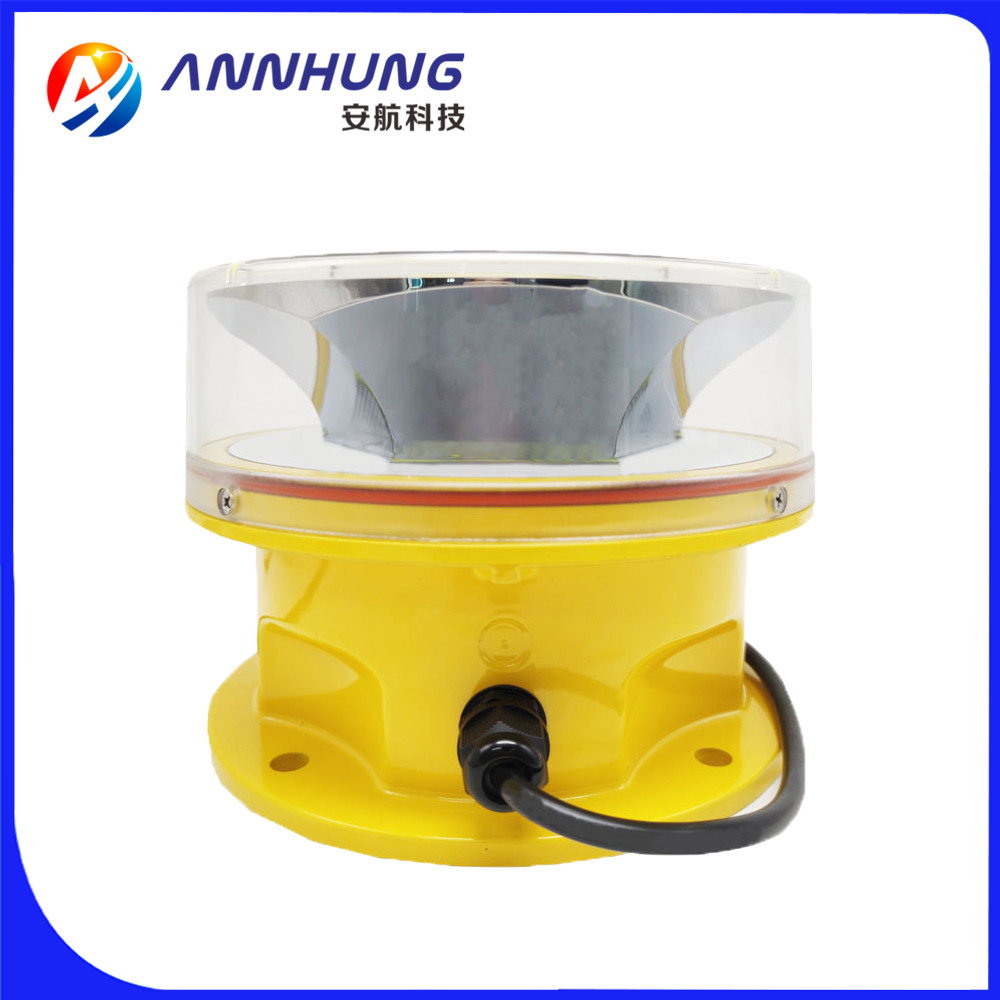

This LED Medium-intensity Type A L865 Aviation Obstruction Light flashing white color, designed for marking top of obstacle which height is between 105-150 meters.
Ultra high intensity CREE LED is used for the light source ensure the long life experience and good performance. Self-designed reflector is used to converge light, which could reach the standard light intensity with as less as the power consumption.
Compliance
ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Medium Intensity Type A Obstruction Light
FAA L-865
Features
Electrical
CREE ultra high intensity LED as light source saving power consumption and maintenance than incandescent light or halogen lamp
Power supply available in DC(12V, 24V, 48V) or AC(110-240VAC)
Physical
Unique design and UV protected polycarbonate reflector for converging light
UV protection Powder coated bright yellow color base make better visibility
Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
Pressure equalizing valve installed under the base to make sure the air could go through but water is avoid, so that the whole light temperature won’t be high to avoid the moist air enter due to pressure and temperature difference.
System design
Built-in photocell for day/night operation(dusk to dawn operation)
Surge and lightning protection
Optional
Dry contact Alarm output for remote monitoring
GPS synchronization
Infrared LED for pilot using NVG
Application
AH-MI-A2 medium-intensity light is used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the obstacle height is between 105-150 meters, and most time work with low intensity lights & medium intensity type B light installed on the lower place.
| Description | Parameter |
| Light Source | LED |
| Flash Characteristics | 20fpm |
| Operation Mode | 24hours operation, 2 different modes |
| LED Life Experience(hours) | >100,000 |
| Operating Voltage | 110-240VAC, 48VDC, or others |
| Power(W) | 20W |
| Mounting | 190×190×θ12 |
| Dimension(mm) | 229×229×168 |
| Weight(kg) | 3 |
| Ambient Temperature(℃) | -55~70 |
| Humidity | 10%-95%RH(No condensation) |
| Wind Speed | 240Km/h |
| Waterproof | IP66 |
| Options Available | Bird deterrent spike |
