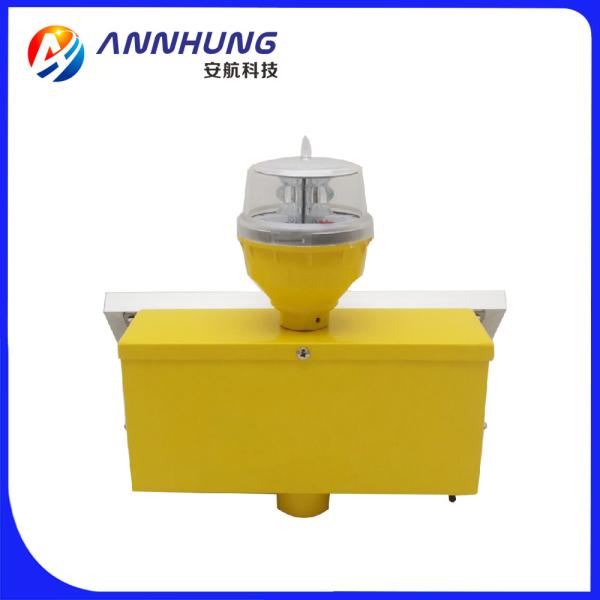

32.5cd Solar Aviation Obstruction Light 80m/s Low Intensity

Name: 325cd Solar Aviation Obstruction Light 80ms Low Intensity
Brand: Annhung
Price: 1 USD

China 32.5cd Solar Aviation Obstruction Light 80m/s Low Intensity wholesale

Brand Name : Annhung

Model Number : AH-LS-A1

Certification : CE, RoHS

Place of Origin : China

MOQ : 1

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000

Delivery Time : 7-15work days

Packaging Details : Carton

Product Name : Solar Aviation Obstruction Light

Light Source : 3 High intensity CREE LED

Emitting Color : Red

Horizontal Output(degrees) : 360

Flash Characteristics : Steady/Flashing(20fpm) adjustable

Operation Mode : Dusk-to-Dawn operation

Ambient Temperature(℃) : -55~70

Humidity : 0~90%

Contact Now

Low-intensity Solar Powered Aviation Obstruction Light System

Aviation Obstruction Light

Solar Aviation Obstruction Light

Solar Powered Aviation Obstruction Light

Low-intensity Aviation Obstruction Light

Application

l AH-LS-A1 solar low-intensity light is specialized used on the top of the High Chimney, Telecommunication tower, Wind Turbine where there is no cable power supply and those facilities which have high requirements on lightning protection.

l Used alone on the top of obstacle which height is less than 45meter

Main parameter

SPECIFICATIONS	AH-LS-A1 Low-intensity L810 Solar Aviation Obstruction Light
Light Characteristics
Light Source	LED
Emitting Color	Red
Intensity(cd)	≥32.5cd
Horizontal Output(degrees)	360
Vertical Divergence(degrees)	≥10
Flash Characteristics	Steady/Flashing(20fpm) adjustable
Operation Mode	Dusk-to-Dawn operation
LED Life Experience(hours)	>100,000
Electrical Characteristics
Operating Voltage	12
Circuit Protection	Integrated
Solar Characteristics
Solar Module Type	Mono crystalline Silicon
Output(watts)	12
Charging Regulation	Microprocessor controlled
Battery Characteristics
Battery type	Lithium ion battery
Nominal Voltage (V)	12
Battery Service Life	Average 3 years
Battery Capacity(AH)	9
Autonomy (hours)	Steady: 90, Flashing: 180
Physical Characteristics
Lamb Body Material	UV protected Polycarbonate
Base Material	Stainless steel 304
Installation Size	3/4inch thread hole(standard)
Overall Size (mm)	268×243×300
Weight(kg)	3
Product Life Expectancy	Average 5 years
Environmental Factors
Ambient Temperature(℃) -55℃~+70℃	-55~70
Humidity	0~90%
Wind Speed	80m/s
Waterproof	IP65
Compliance
ICAO	Annex 14 Volume 1,'Aerodrome Design and
	Operations’ Sixth edition July 2013, table 6.3
	Low-intensity Type A/B Obstacle Light
FAA	L-810
Optional
	NVG - compatible infrared (IR) LED

Company Information

Anhang Technology founded in year 2009, is a high-tech specialized enterprise focusing on research, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our facory located in Shenzhen City, China, have more than 10 years manufacturing experience for clients from whole world. Till now, we've got 42+ patent and passed international and domestic certification, ie: CE, ICAO, FAA, CAAC, IALA, ROHS, ISO9001, ISO14001, ISO45001,etc.

All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO(International Civil Aviation Organization), CAAC(Civil Aviation Administration of China), FAA(Federal Aviation Administration). The marine navigation lanterns are produced according to the standards of IALA (International Association of Lighthouse Authorities).
