This 2000cd Solar Aviation Obstruction Light flashing red color, designed for marking top of obstacle which height is between 45 to 105 meters.
There are a red lamp and a white lamp in the housing, one is the main lamp, the another one is the standby lamp. When main lamp fail, standby lamp turn on automatically.
Product detailed information:
Compliance
** ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 Medium Intensity Type B Obstruction Light
** FAA L-864
Electrical
International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours
Physical
UV & vibrations protected polycarbonate lens for converging light
Self-contained without external power supply, Cable cost saving & cabling job saving, No wiring job, nice & easy installation
Side open stainless steel battery box
Battery: VRLA (Valve-Regulated Lead Acid Battery)
System design
Solar panel as photocell for day & night working mode (dusk to dawn mode)
Fuse as the ON/OFF switch is more reliable
Main-standby mode
Optional
► GPS Synchronization
► GSM cellphone monitoring
► Infrared LED for pilot using NVG
► Remote control ON/OFF
Application
AH-MS-SD solar medium-intensity avistion light is specialized used on the top of the High Chimney, Telecommunication tower, Wind Turbine where there is no cable power supply and those facilities which have high requirements on lightning protection, and mostly come with the low intensity lights which are installed at lower place. It can be moved base your request.
More product parameter:
| Light Source | LED |
| Emitting Color | Red |
| Intensity(cd) | 2,000cd(Night), 20,000cd(Daytime) |
| Flash Characteristics | Flashing 20FPM |
| Solar Module Type | Mono crystalline Silicon |
| Charging Regulation | Microprocessor controlled |
| Battery type | Valve-Regulated Lead Acid Battery(VRLA) |
| Battery Service Life | Average 3 years |
| Autonomy (hours) | 150 |
| Lamb Body Material | UV protected Polycarbonate |
| Base Material | Stainless steel 304 |
| Overall Size (mm) | 525*490*490 |
| Installation Size | 200*322*M10 |
| Product Life Expectancy | Average 3 years |
| Humidity | 0~90% |
| Wind Speed | 80m/s |

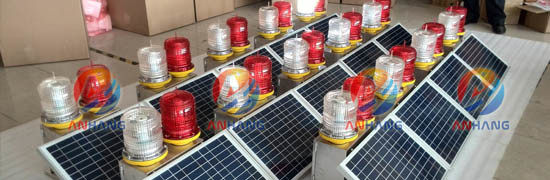

Product detailed imagine:
Delivery:
Anhang Technology Company Limited is a specialized enterprise focusing on research, production, sales and after-sales service of aviation obstruction light, and have 8 years manufacturing experience for clients from whole world.
