Electric Power Tower Solar Powered Emergency Lights Red FAA L810 Low Intensity

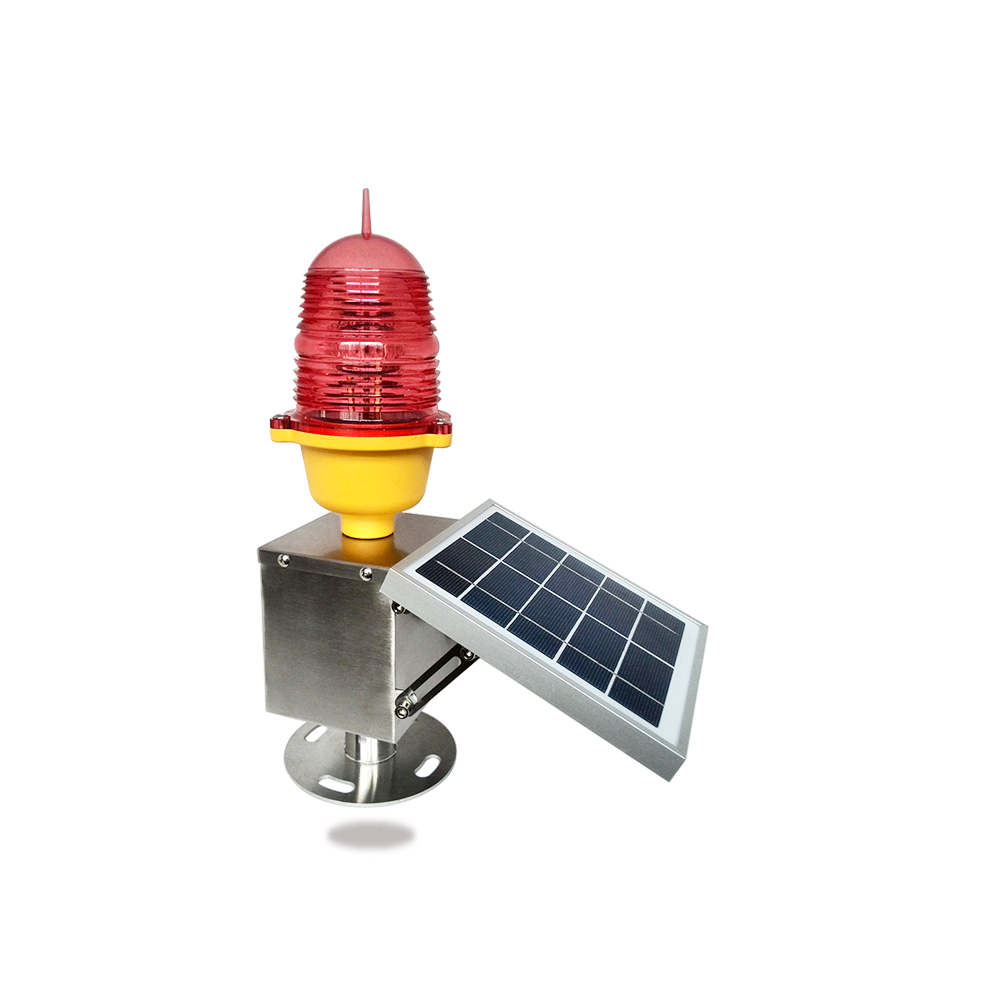

AH-LS-A is a self-contained obstruction light which consist of solar panel, battery and lamp. There is no need for external power input. The vertical degree of the solar panel is adjustable to ensure it could get the most sunlight in different area.It is designed for marking top of obstacle that do not exceed 45 meters in height.

Compliance
** CAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 Low Intensity Type A / B Obstruction Light
** FAA L-810
Electrical
* LED as light source, life experience >100,000hours
Physical
 With bird needle to prevent bird drop
 UV & vibrations protected polycarbonate lens for converging light
 Powder coated die casting aluminum base, light fastness, resist snow and rain
 Battery box made of corrosion resistant 304 stainless steel
 Self-contained without external power supply, Cable cost saving & cabling job saving, No wiring job, nice & easy installation
 Solar panel vertical degree is adjustable
System design
♦ Solar panel as sensor(Photo diode) for day & night working mode (dusk to dawn mode)
♦ ON/OFF button under base make local control easy
♦ Steady/Flashing(20fpm) adjustable switch available
♦ Solar panel angel is adjustable (Vertical 15-90° )
Optional
► GSM cellphone monitoring
► Infrared LED for pilot using NVG(Night Vision Goggles)
► Remote control ON/OFF

Application
AH-LS/A solar low-intensity light is specialized used on the top of the High Chimney, Telecommunication tower, Wind Turbine where there is no cable power supply and those facilities which have high requirements on lightning protection.
Used alone on the top of obstacle which height is less than 45meter.
